Electric motor controller JLStar 500W 24V 30A Overload

Currently unavailable

Notify on availability
58.49
Price incl. VAT, plus Shipping
Delivery weight: 0.36 kg

Item name:
Electric motor controller 500W 24V 30A


Brand:
JLStar


Model/type & pictures:
UltiPower




stock photo, without leds






Performance data:

voltage

24 V

threshold voltage

20 +/- 0,5 V

power

<= 500 W

current

30 +/- 1 A




External dimensions:

housing length

10,5 cm

length incl. holder

13,8 cm

housing width

9,4 cm

housing height

4,8 cm



Further attributes:

-for 2-pole electric DC motors
-mosfets inside, more efficiency
-overload protected
-CE certified
-housing material: aluminium
-mounting holes
-legal warranty: 24 month

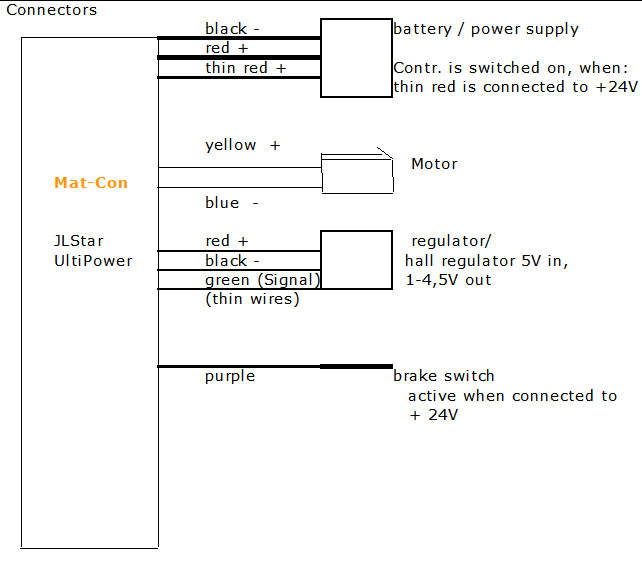

Connection plan:



Note: Delivery includes fuse set.



Areas of applications:

This direct current electric motor controller is suitable e. g. for electric scooter, (SMFC) scooter, e-scooter, fun-scooter, trottinette, pocket bike, pocketbike, tricycle, quad bike, electric quad bike, kids quad bike, longboard, electric board, e-board, electric bike, e-bike, recumbent bike, soap-box, rickshaw, trishaw, Velotaxi, tensile device, tensile device for wheelchairs, electric wheelchair, railway, garden railway, small railway, big railway, steam railway, park railway, model railway, narrow gauge railway, cart, electric car, e-car, golf cart, hand bike, pedal boat, electric pedal boat, plane, helicopter, model making, miniature making, theater engineering, stage engineering, industry, machines... .
This DC Controller manages the whole board electric, like motor speed, light, controll lamp, brake, brake light... .



Available accessories:

Motor, lead acid battery, charger, throttle, pedal, relay, switch ...
